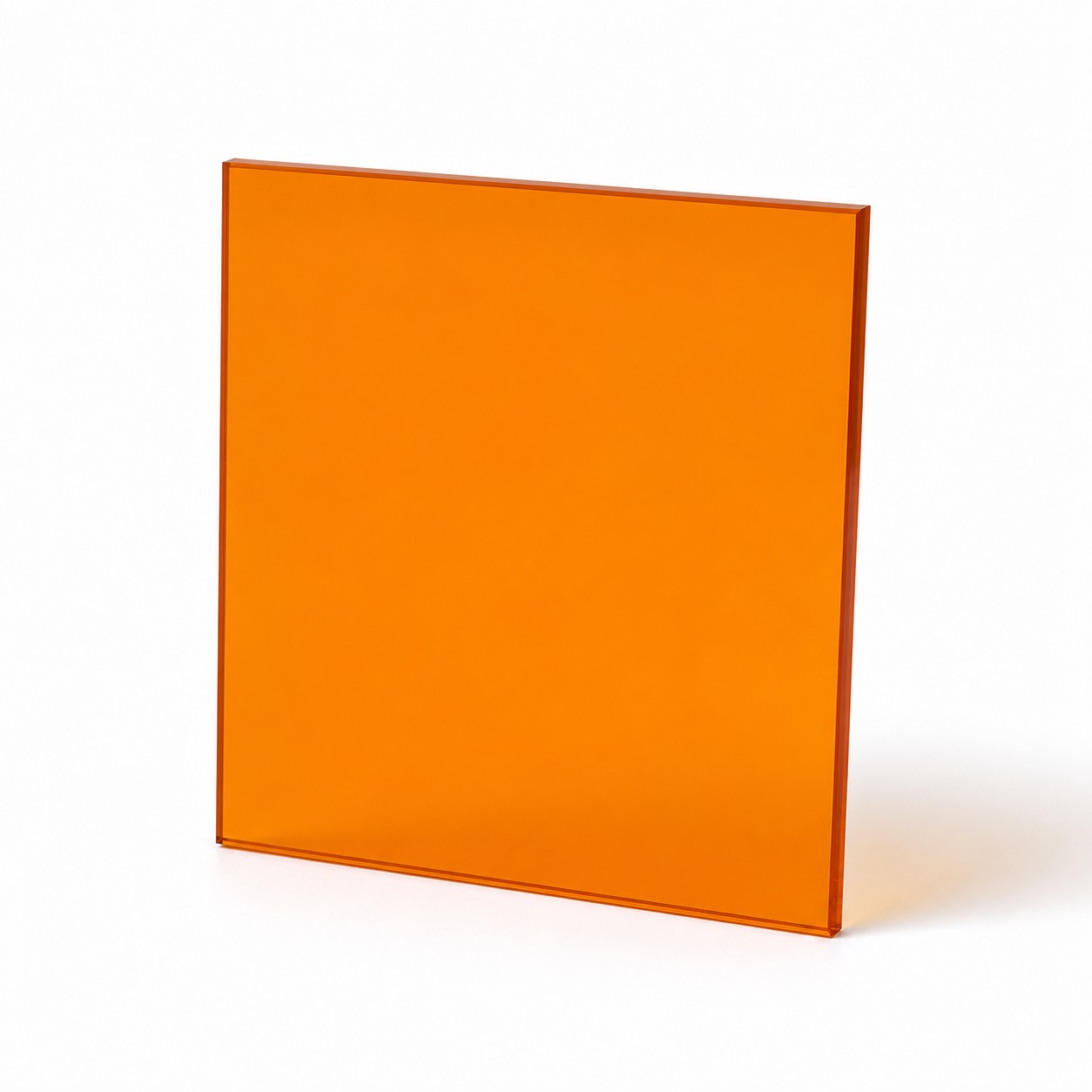

532nm Laser Safety Windows | Blocks 190–540nm UV & Green Lasers | Strong Absorption of 10.6 μm CO₂ Lasers
CT-532 Core Protective Range
-
190–540nm Full Spectrum Protection
→ 190–535nm achieves OD5+
→ Effectively blocks UV (193nm, 248nm), blue light (355nm, 445nm), and green lasers (532nm Nd:YAG) -
532nm (Nd:YAG Green Laser): OD6+
→ High-efficiency protection against the most common industrial and medical green lasers -
600–1100nm: High Transmission >80%
→ Ensures clear visibility during laser operation and monitoring -
10.6 μm (CO₂ Laser): OD5+
→ Naturally absorbed by the material’s molecular structure in the mid-infrared range, providing effective protection for CO₂ laser cutting and engraving systems

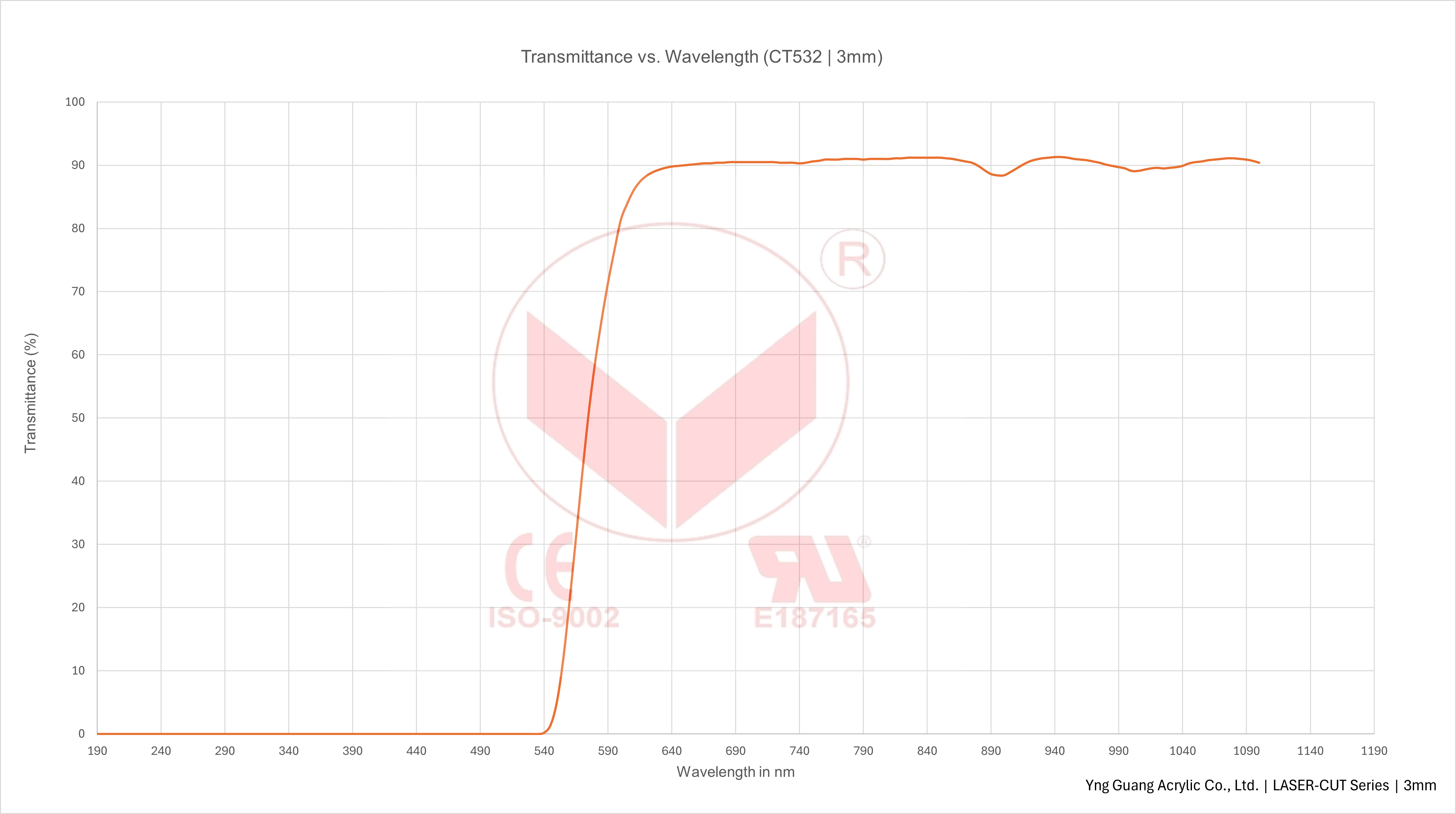

📊 Swipe or scroll horizontally to switch between Transmittance (%) and Optical Density (OD) charts, and see how the filter blocks UV, blue, green, and CO₂ lasers.
| Item | Value / Description |
|---|---|
| Sheet Model | CT-532 |
| Optical Density Rating | OD6+ @532nm |
| Blocking Wavelength Range | Covers UV (193nm, 248nm), blue lasers (355nm, 445nm), and green lasers (532nm Nd:YAG). |
| Visible Light Transmission | ≥35%@380-700nm ; ≥ 80% @ 600–1100nm |
| Thickness | Standard 3mm,5mm (Custom sizes available) |
| Material | Optical-grade cast acrylic (PMMA) |
| Spectral Range | Wavelength (nm) | Optical Density (OD) | Notes |
|---|---|---|---|
| UV-C | 180 – 280 | OD5+ | Complete blocking |
| UV-B | 280 – 315 | OD5+ | Effective protection |
| UV-A | 315 – 400 | OD5+ | Effective protection |
| Visible – Blue light | 400 – 500 | OD5+ | Covers 445nm |
| Visible – Green laser | 500 – 540 | OD6+ | Covers 532nm Nd:YAG |
| 540 – 600 nm | 540 – 600 | OD5-OD1+ | Transition band |
| Visible – Red / NIR | 600 – 1100 | OD0 | High transmission (>80%) |
| Mid-IR (CO₂ laser) | 10600 | OD5+ | Natural absorption by PMMA molecular structure |
| Wavelength (nm) | Common Equipment | Typical Application | Shielding Benefit |
|---|---|---|---|
| 355nm | UV Laser Marking Systems, UV Curing Equipment | Precision processing (PCB cutting, drilling), UV bonding | Effectively blocks UV rays to protect eyes and skin from radiation damage |
| 445nm | Dental Blue Curing Lamps, Blue Light Therapy Devices | Dental curing, acne therapy, projection display | Reduces blue light exposure, protects retinal and epithelial cells |
| 520nm | Green Laser Levels, Green Projection Systems | Construction alignment, indoor/outdoor positioning, laser excitation | Minimizes prolonged green light exposure and visual fatigue |
| 532nm | Nd:YAG Green Lasers, Surgical Lasers, Aesthetic Laser Systems | Metal welding, vascular treatment, laser skin therapy | Efficiently blocks 532nm green laser radiation to prevent retinal and corneal damage |
| 10.6 μm | CO₂ Laser Cutting Machines, Engraving Systems | Non-metal material cutting, engraving, medical surgical devices | Strong absorption of mid-infrared radiation, protects operators from CO₂ laser exposure and thermal hazards |
Not sure which OD rating fits your laser application? Contact our technical team for personalized guidance and product recommendations.
Q1: What makes Yng Guang’s laser protection panels different?
We are the only manufacturer in Taiwan producing laser protection acrylic filters in-house. Unlike resellers of imports, we control formulation and casting, use optical-grade PMMA, and provide verified spectral performance across 190–540 nm and 10.6 μm CO₂. This means stable quality, faster lead times, and flexible customization.
Q2: Which wavelengths do the panels cover?
Broad protection from UV-C / UV-B / UV-A through visible blue (≈400–500 nm) and green (500–540 nm, incl. 532 nm Nd:YAG), plus strong absorption at 10.6 μm CO₂. Outside the blocked bands, visible transmission remains high for clear observation.
Q3: Do you have test data or certifications?
Yes. Each grade comes with in-house spectrophotometric data (OD curves) and can be supported by international third-party certifications (e.g., SGS, UL) upon request.
Q4: How do I choose the right OD level for my laser?
The required OD depends on wavelength, output power, and application. Share your laser model and usage (e.g., cutting, marking, medical), and our technical team will recommend an OD that balances safety and visibility.
Q5: Will it also protect against IR leakage from green lasers?
Some 532 nm DPSS systems emit residual IR (e.g., 1064 nm). Our panels are designed to consider multi-band risks and can be specified to block both visible green and IR leakage where required.
Q6: What customization and sizes are available?
We offer precision cutting up to 1220 × 2440 mm, with tailored OD levels, thicknesses, and mounting options to suit labs, industrial enclosures, and medical systems.
Q7: What about visibility and durability?
With optical-grade PMMA, our panels maintain high visible transmission (>80% in 600–1100 nm) for clear viewing. They also offer excellent chemical stability and surface hardness suitable for daily operation.
